DSP
2380
1190 PCS/Tape
ROCKCHIP
Integrated Circuits IC

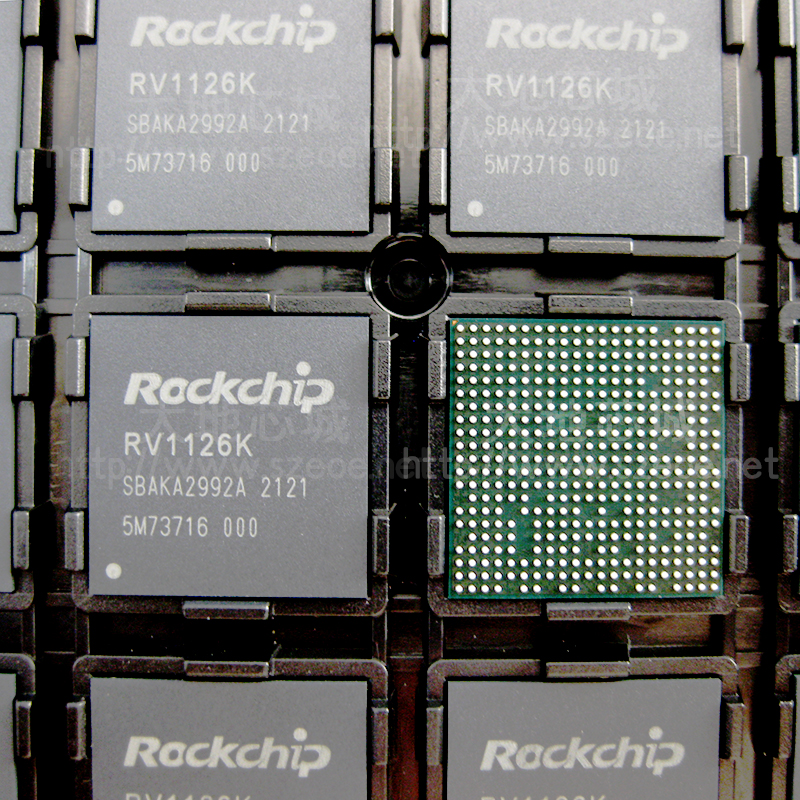

RV1126
Quad core ARM Cortex-A7 and RISC-V MCU
250ms Fast booting
2.0Tops NPU
14M ISP with 3F HDR
Up to 3 sensor simultaneous input
4K H.264/H.265 encoder and decoder
| SPECIFICATIONS | |
| CPU | • Quad core ARM Cortex-A7 |
| • RISC-V MCU | |
| NPU | • 2.0Tops, support INT8/ INT16 |
| Memory | • 32bit DDR3/DDR3L/LPDDR3/DDR4/LPDDR4 |
| • Support eMMC 4.51, SPI Flash, Nand Flash | |
| • Support fast booting | |
| Display | • MIPI-DSI/RGB interface，up to 1080P60fps |
| 2D Graphics Engine | • Support rotation , x-mirror , y-mirror |
| • Support alpha blending | |
| • Support scale down/up | |
| Multi-Media | • 14M ISP 2.0 with 3F HDR(Line-based/Frame-based/DCG) |
| • Support 2*MIPI CSI /LVDS/sub LVDS | |
| • DVP interface with BT.656/BT.1120 | |
| • 4K H.264/H.265 30fps video encode -3840 x 2160@30 fps+720p@30 fps encoding | |
| • 4K H.264/H.265 30fps video decoder -3840 x 2160@30 encoding + 3840 x 2160@30 fps decoding | |
| External interface | • RGMII interface with TSO network acceleration |
| • USB 2.0 OTG and USB 2.0 host | |
| • Dual SDIO 3.0 interface for Wi-Fi and SD card | |
| • 8ch I2S with TDM/PDM, 2ch I2S | |
