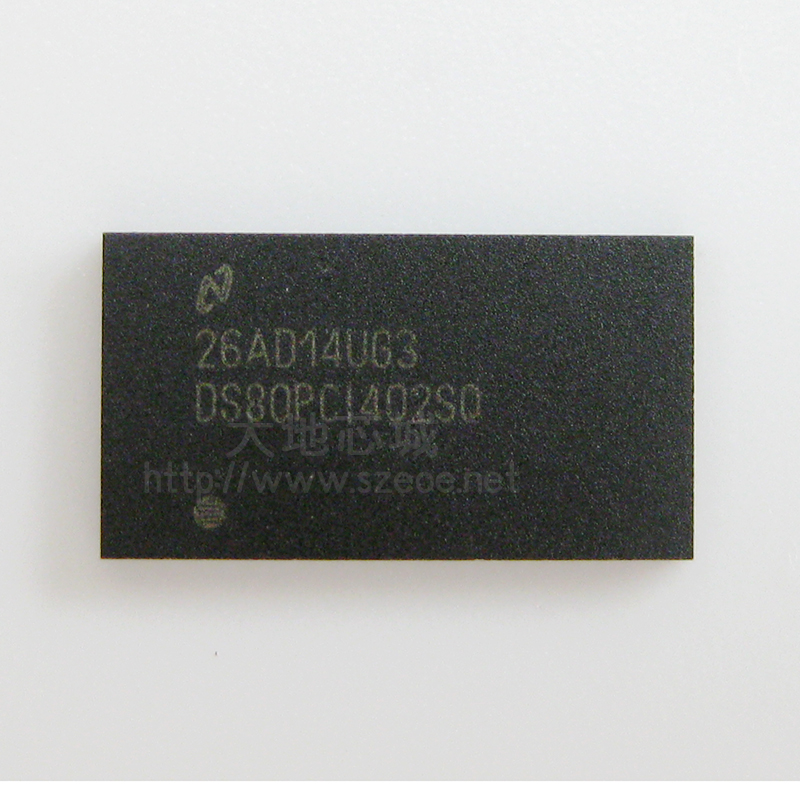

DS80PCI402SQ/NOPB

4 Lane PCI Express Repeater

Stock

4500

Packing

2000 PCS/Tape

Brand

TI

Catalogue

Communication Chip

Features for the DS80PCI402

  • Comprehensive family, proven system interoperability

    • DS80PCI102: x1 PCIe Gen-1, Gen-2, and Gen-3

    • DS80PCI402: x4 PCIe Gen-1, Gen-2, and Gen-3

    • DS80PCI800: x8/x16 PCIe Gen-1, Gen-2, and Gen-3

  • Automatic rate-detect and adaptation to Gen-1, Gen-2, and Gen-3 speeds

  • Seamless support for Gen-3 transmit FIR handshake

  • Receiver EQ (up to 36 dB), transmit De-emphasis (up to 12 dB)

  • Adjustable transmit VOD: 0.8 to 1.3 Vp-p (pin mode)

  • 0.2 UI of residual deterministic jitter at 8 Gbps after 40 inches of FR4 or 10 m 30-awg PCIe cable

  • Low power dissipation with ability to turn off unused channels: 65 mW/channel

  • Automatic receiver detect (hot-plug)

  • Multiple configuration modes: Pins/SMBus/Direct-EEPROM load

  • Flow-thru pinout: 54-Pin WQFN (10-mm × 5.5-mm, 0.5-mm pitch)

  • Single supply voltage: 2.5 or 3.3 V (selectable)

  • ±5 kV HBM ESD rating

  • −40°C to 85°C operating temperature range

Description for the DS80PCI402

The DS80PCI402 is a low-power, 4-lane repeater with 4-stage input equalization, and an output de-emphasis driver to enhance the reach of PCI-Express serial links in board-to-board or cable interconnects. This device is ideal for x4 (or lower) PCI-Express configuration, and it automatically detects and adapts to Gen-1, Gen-2, and Gen-3 data rates for easy system upgrade.

DS80PCI402 offers programmable transmit de-emphasis (up to 12 dB), transmit VOD (up to 1300 mVp-p), and receive equalization (up to 36 dB) to enable longer distance transmission in lossy copper cables (10 meters or more), or backplanes (40 inches or more) with multiple connectors. The receiver can open an input eye that is completely closed due to inter-symbol interference (ISI) introduced by the interconnect medium.

The programmable settings can be applied easily through pins or software (SMBus/I2C), or can be loaded through an external EEPROM. When operating in the EEPROM mode, the configuration information is automatically loaded on power up, which eliminates the need for an external microprocessor or software driver.
