Data converters
5620
2000 PCS/Tape
TI
Communication Chip
Current Consumption as Low as 315 µA (typ)
Wide Supply Range: 2.3 V to 5.5 V
Programmable Gain: 1 to 128
Programmable Data Rates: Up to 2 kSPS
Up to 20 Bits Effective Resolution
Simultaneous 50-Hz and 60-Hz Rejection at 20 SPS With Single-Cycle Settling Digital Filter
Two Differential or Four Single-Ended Inputs
Dual-Matched Programmable Current Sources:
10 µA to 1.5 mA
Internal 2.048-V Reference: 5 ppm/°C (typ) Drift
Internal 2% Accurate Oscillator
Internal Temperature Sensor:
0.5°C (typ) Accuracy
I2C-Compatible Interface
Supported I2C Bus Speed Modes:
Standard-Mode, Fast-Mode, Fast-Mode Plus
16 Pin-Configurable I2C Addresses
Package: 3.0-mm × 3.0-mm × 0.75-mm WQFN
The ADS122C04 is a precision, 24-bit, analog-to-digital converter (ADC) that offers many integrated features to reduce system cost and component count in applications measuring small sensor signals. The device features two differential or four single-ended inputs through a flexible input multiplexer (MUX), a low-noise, programmable gain amplifier (PGA), two programmable excitation current sources, a voltage reference, an oscillator, and a precision temperature sensor.
The device can perform conversions at data rates up to 2000 samples-per-second (SPS) with single-cycle settling. At 20 SPS, the digital filter offers simultaneous 50-Hz and 60-Hz rejection for noisy industrial applications. The internal PGA offers gains up to 128. This PGA makes the ADS122C04 ideally suited for applications measuring small sensor signals, such as resistance temperature detectors (RTDs), thermocouples, thermistors, and resistive bridge sensors.
The ADS122C04 features a 2-wire, I2C-compatible interface that supports I2C bus speeds up to 1 Mbps. Two address pins allow selection of 16 different I2C addresses for the device.

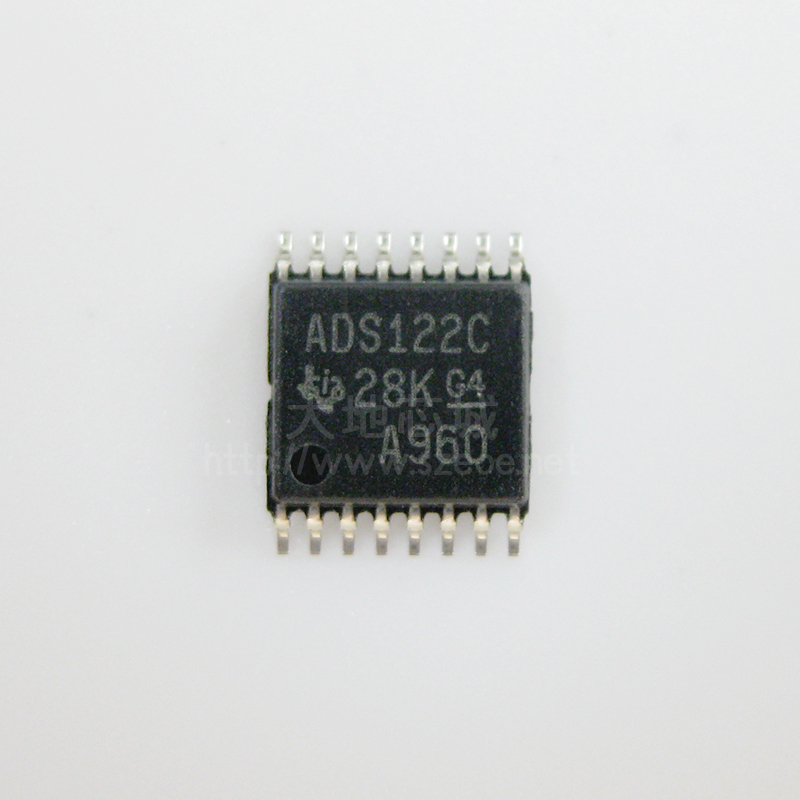

The ADS122C04 is offered in a leadless 16-pin WQFN or a 16-pin TSSOP package and is specified over a temperature range of –40°C to +125°C.
